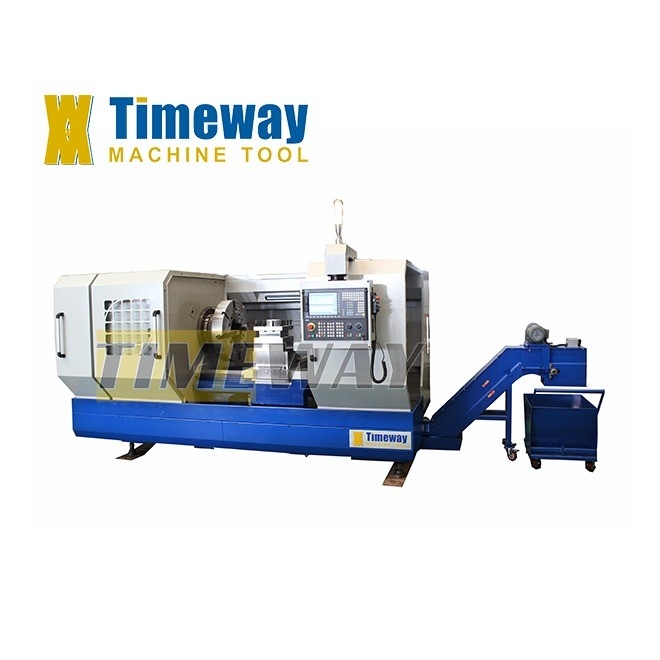

QK-255F Series CNC Oil Country Lathe Pipe Thread Machining Center with 420mm X Axis Travel
Product Details:
| Place of Origin: | Henan, China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $26,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | TURNING CENTER | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 600 Mm |
| Spindle Motor Power(kW): | 15 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 420 Mm |
| Travel (Z Axis)(mm): | 850 Mm | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 6000 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Lathe Machine CNC | Function: | Metal Turning |
| After-sales Service Provided: | Online Support | Precision: | High Precision Machine |
| Max. Swing Over Bed: | 800mm | Spindle Speed: | 20-420rpm |
| Loading Capacity: | 4000kg | Distance Between Centers: | 1000mm |
| Pipe Threading Range: | 120-250mm | Condition: | New |
| Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa | Max. Spindle Speed (r.p.m): | 420 R.p.m |
| Spindle Bore(mm): | 255 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Marketing Type: | Hot Product | Core Components: | Other |
Product Description
Product Description
Specification
Specification | QK-255F |
Max. swing over bed | 800mm |
Max. swing over cross slide | 480mm |
Distance between centers | 1000mm |
Pipe threading range | 120-250mm |
Bed width | 600mm |
Loading capacity | 4000kg |
Spindle bore | 255mm |
Spindle speed steps (manual) | 4 steps (inverter) |
Spindle speed | 20-420rpm |

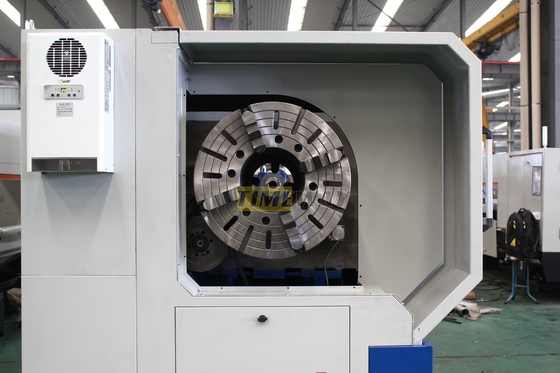

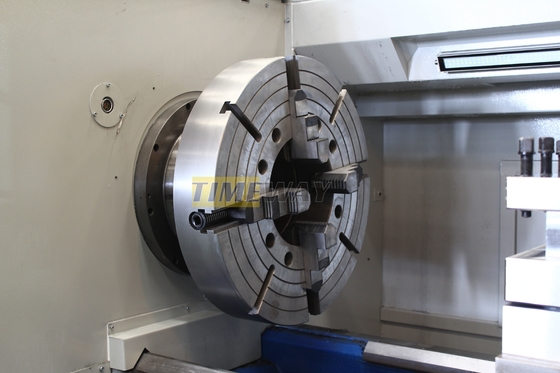

Chuck size | 630mm |
Chuck type (manual) | 4-jaw |
Turret type (electric) | V4 |
Tool shank size | 32x32mm |
X-axis travel | 420mm |
Z-axis travel | 850mm |
X-axis rapid feed speed | 4000mm/min |
Z-axis rapid feed speed | 6000mm/min |
Tailstock quill diameter | 120mm |
Tailstock quill taper | MT6 |
Main motor power | 15kw |
Machine dimensions (LxWxH) | 3600x1930x1900mm |
Machine weight | 6000kg |
STANDARD ACCESSORIES:

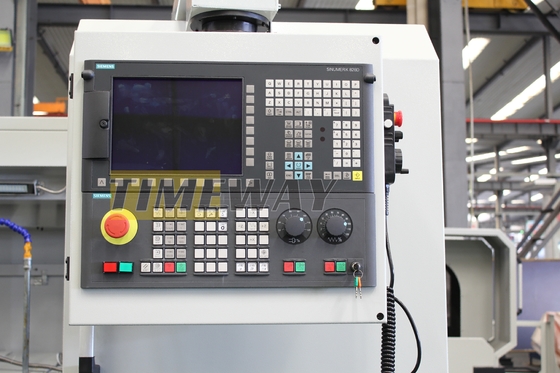

FANUC/GSK/SIEMENS CNC system,
Big bore chuck (Front & Rear),

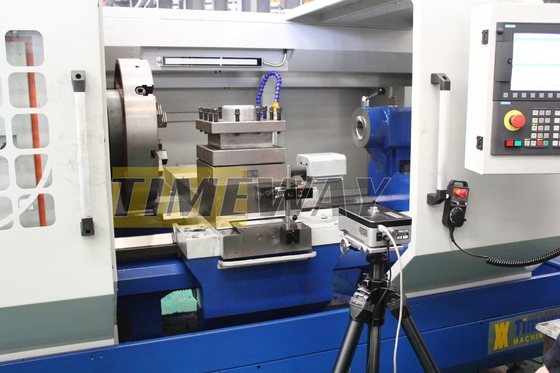

4-station electric tool-post,
Work lamp,
Pilot lamp,
Cooling system,
Semi-closed guard, etc.
Semi-closed guard, etc.
OPTIONAL ACCESSORIES:
Penumatic chuck,
Other tool-post,
Chip conveyor,
Air conditioner,
Rear support for long pipe.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
