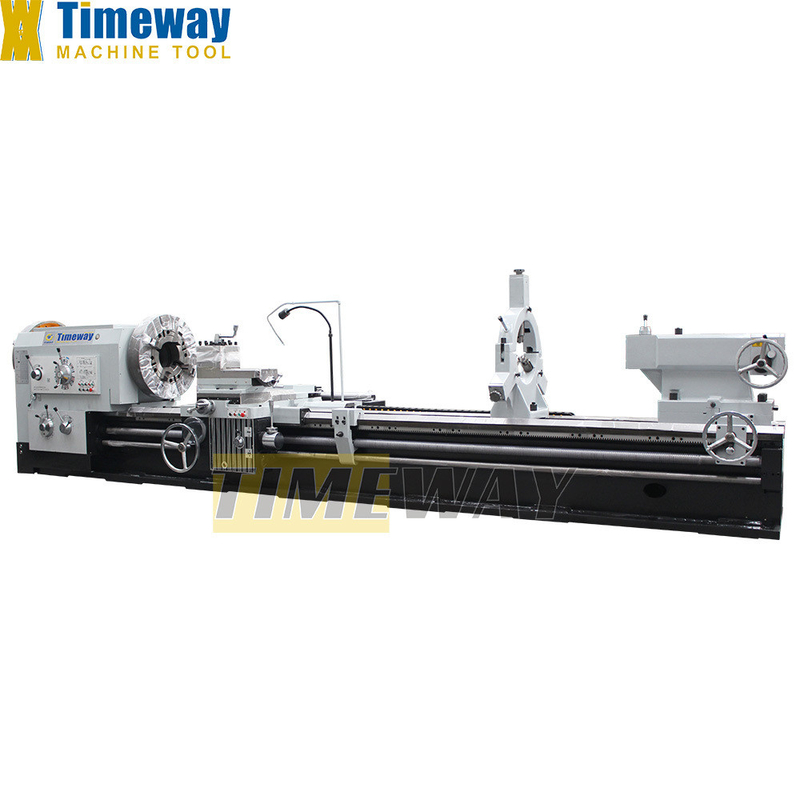

280mm Spindle Bore Pipe Threading Torno with Stable Performance and Mature Structure
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | Q-280 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Weight (KG): | 10000 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Oil Country Lathe |
| Machine Type: | Horizontal Normal Lathe | Keyword: | Turning Machine |
| Function: | Machining Metal | Precision: | High Precision |
| Processing: | Metal Workpiece | Distance Between Centers: | 1500/3000mm |
| Max. Swing Over Bed: | 1000mm | Max. Swing Over Cross Slide: | 610mm |
| Bed Width: | 755mm | Condition: | New |
| Applicable Industries: | Building Material Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, Turkey, Italy, Viet Nam, Philippines, Indonesia, India, Russia, Spain, Thailand, Colombia, Nigeria, Tajikistan, Japan, Australia |
| Core Components: | Pump, Gear, Motor | Spindle Bore(mm): | 280 |
| Max. Turned Length (mm): | 3000 Mm | Year: | 2024 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description
Features:
1.After years of improvement and running-in, this pipe threading lathe is already a high-performance lathe with mature structure and stable performance.
2.The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so
on. At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.
3.The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle.
4.Adopts premium cast-iron with hardened and ground guideway, 755mm width bed improves enough rigidity and large loading capacity (6000kg), to meet heavy duty cutting for customers.

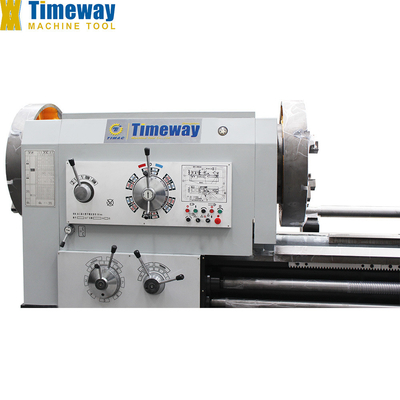

5.Simple and clear operating handles on the spindle box & feed-box make easier gear shift and speed change.
1.After years of improvement and running-in, this pipe threading lathe is already a high-performance lathe with mature structure and stable performance.
2.The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so
on. At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.
3.The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle.
4.Adopts premium cast-iron with hardened and ground guideway, 755mm width bed improves enough rigidity and large loading capacity (6000kg), to meet heavy duty cutting for customers.
5.Simple and clear operating handles on the spindle box & feed-box make easier gear shift and speed change.
Specification | Unit | Q-280 | ||
Max. swing over bed | mm | Φ1000 | ||
Max. swing over cross slide | mm | Φ610 | ||
Distance between centers | mm | 1500/3000 | ||
Pipe threading range | mm | Φ130-270 | ||
Bed width | mm | 755 | ||
X axis travel | mm | 520 | ||
Z axis travel | mm | 1350/2850 | ||
Max. load capacity | kg | 6000 | ||
Spindle bore | mm | Φ280 | ||
Spindle speed steps | steps | 12 | ||
Spindle speed | rpm | 16-380 | ||

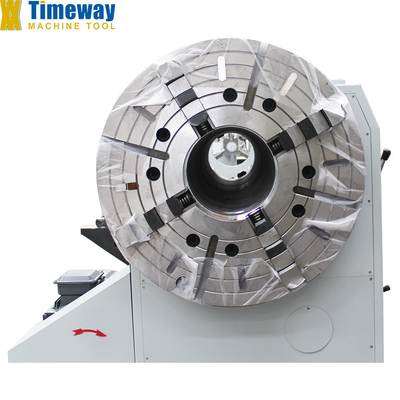

Chuck size | mm | Φ800 | ||
Chuck type | - | 4-jaw manual | ||
Turret type(manual) | - | V4 | ||
Tool shank size | mm | 45x45 | ||
X-axis feed range(steps) | mm/r | 0.05-1.5(40) | ||
X-axis rapid feed | mm/min | 1870 | ||
Z-axis feed range(steps) | mm/r | 0.1-3(40) | ||
Z-axis rapid feed | mm/min | 3740 | ||
No. of Metric thread and range | mm | 1-30(30) | ||
No. of Inch thread and range | TPI | 1-28(27) | ||
Tailstock quill diameter | mm | Φ140 | ||
Tailstock quill taper | - | MT6 | ||
Tailstock quill travel | mm | 300 | ||

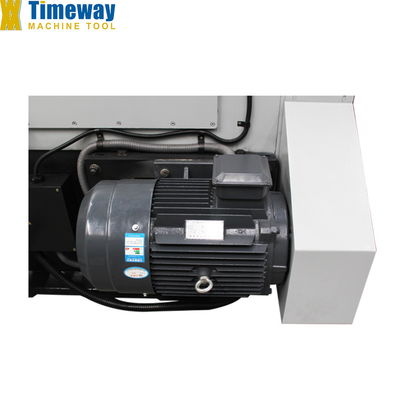

Main motor power | kw | 22 | ||
Rapid motor power | kw | 1.5 | ||
Coolant motor power | kw | 0.125 | ||
Machine dimensions (LxWxH) | mm | 4800/6400x2100x1600 | ||
Machine weight | kg | 10000/11500 | ||
· Big bore chuck (Front & Rear) · Dead center · 4-station tool post · Taper turning attachment · Cooling system · Work lamp · Chip collecting plate · General tools · Leveling wedge and bolts · Operation manual (English) | · 2 or 3-axis DRO · Chuck guard · Too-post guard · Rear splash guard · Rear support for long pipe |
