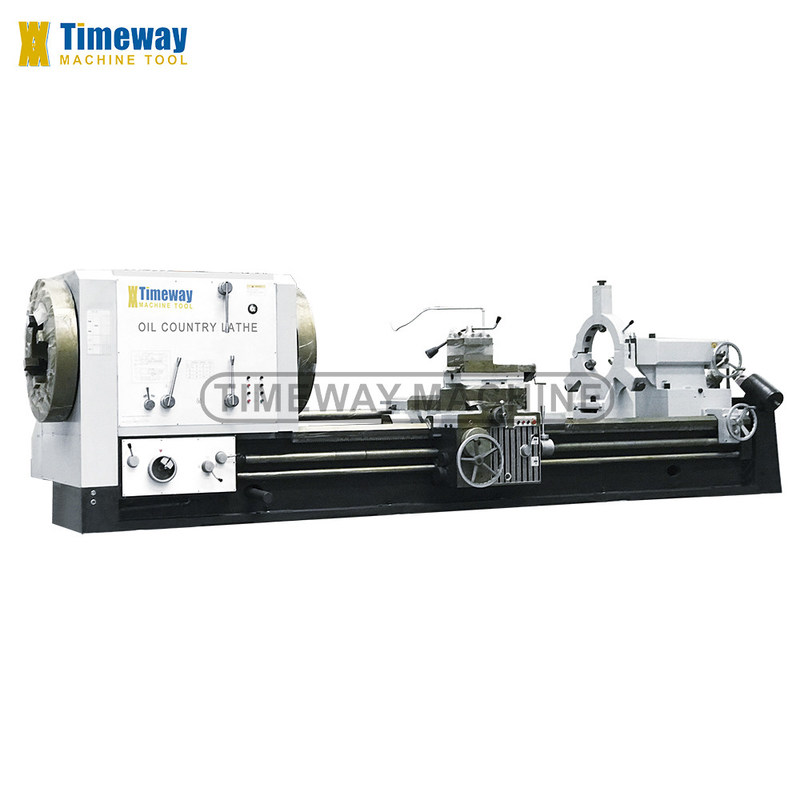

Construction Works Q-520 Oil Country Lathe/ Pipe Threading Torno with 755mm Bed Width
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | Q-520 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,880.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 4.9 - 180 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Weight (KG): | 15000 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Oil Country Lathe | Machine Type: | Horizontal Normal Lathe |
| Keyword: | Turning Machine | Function: | Machining Metal |
| Precision: | High Precision | Processing: | Metal Workpiece |
| Distance Between Centers: | 1500/3000mm | Max. Swing Over Bed: | 1200mm |
| Max. Swing Over Cross Slide: | 710mm | Bed Width: | 755mm |
| Condition: | New | Applicable Industries: | Building Material Shops, Construction Works , Energy & Mining |
| Showroom Location: | Canada, Turkey, Italy, Viet Nam, Philippines, Indonesia, India, Russia, Spain, Thailand, Colombia, Nigeria, Tajikistan, Japan, Australia | Core Components: | Pump, Gear, Motor |
| Spindle Bore(mm): | 520 | Max. Turned Length (mm): | 3000 Mm |
| Year: | 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description
Features:
1.After years of improvement and running-in, this pipe threading lathe is already a high-performance lathe with mature structure and stable performance.
2.The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so
on. At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.
1.After years of improvement and running-in, this pipe threading lathe is already a high-performance lathe with mature structure and stable performance.
2.The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so
on. At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.
Specification | Unit | Q-520 | ||
Max. swing over bed | mm | Φ1200 | ||
Max. swing over cross slide | mm | Φ710 | ||
Distance between centers | mm | 1500/3000 | ||
Pipe threading range | mm | Φ330-510 | ||
Bed width | mm | 755 | ||
X axis travel | mm | 520 | ||
Z axis travel | mm | 1350/2850 | ||
Max. load capacity | kg | 6000 | ||
Spindle bore | mm | Φ520 | ||
Spindle speed steps | steps | 9 | ||
Spindle speed | rpm | 4.9-180 | ||

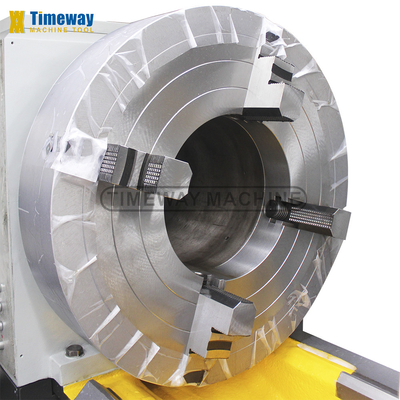

Chuck size | mm | Φ1000 | ||
Chuck type | - | 4-jaw electric | ||
Turret type(manual) | - | V4 | ||
Tool shank size | mm | 45x45 | ||
X-axis feed range(steps) | mm/r | 0.05-0.75 (32) | ||
X-axis rapid feed | mm/min | 1870 | ||
Z-axis feed range(steps) | mm/r | 0.1-1.5 (32) | ||
Z-axis rapid feed | mm/min | 3740 | ||
No. of Metric thread and range | mm | 1-15 (23) | ||
No. of Inch thread and range | TPI | 2-28 (22) | ||
Tailstock quill diameter | mm | Φ160 | ||
Tailstock quill taper | - | MT6 | ||
Tailstock quill travel | mm | 300 | ||
Main motor power | kw | 22 | ||
Rapid motor power | kw | 1.5 | ||
Coolant motor power | kw | 0.125 | ||
Machine dimensions (LxWxH) | mm | 5000/6500x2100x1800 | ||
Machine weight | kg | 15000/16500 | ||

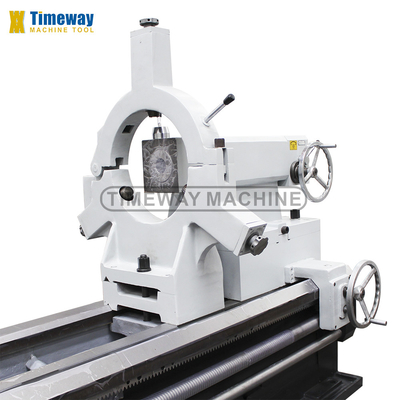

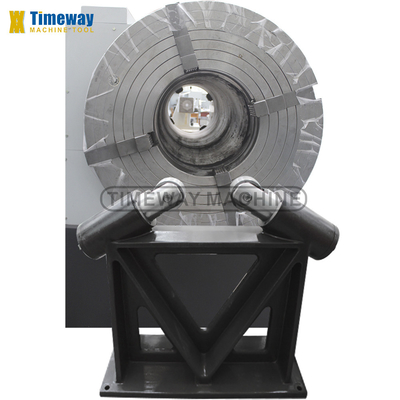

· Electric chuck · Follow rest · Dead center · 4-station tool post · Taper turning attachment · Cooling system · Work lamp · General tools · Leveling wedge and bolts · Operation manual (English) | · 2 or 3-axis DRO · Chuck guard · Too-post guard · Rear support for long pipe |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
