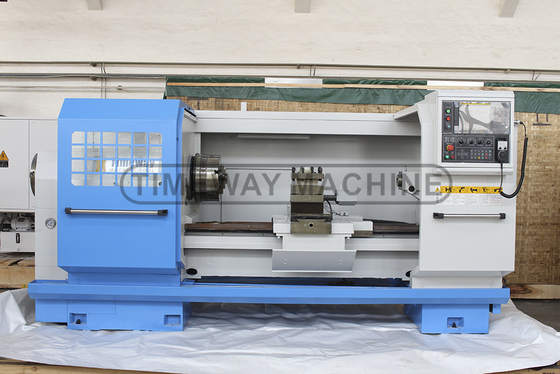

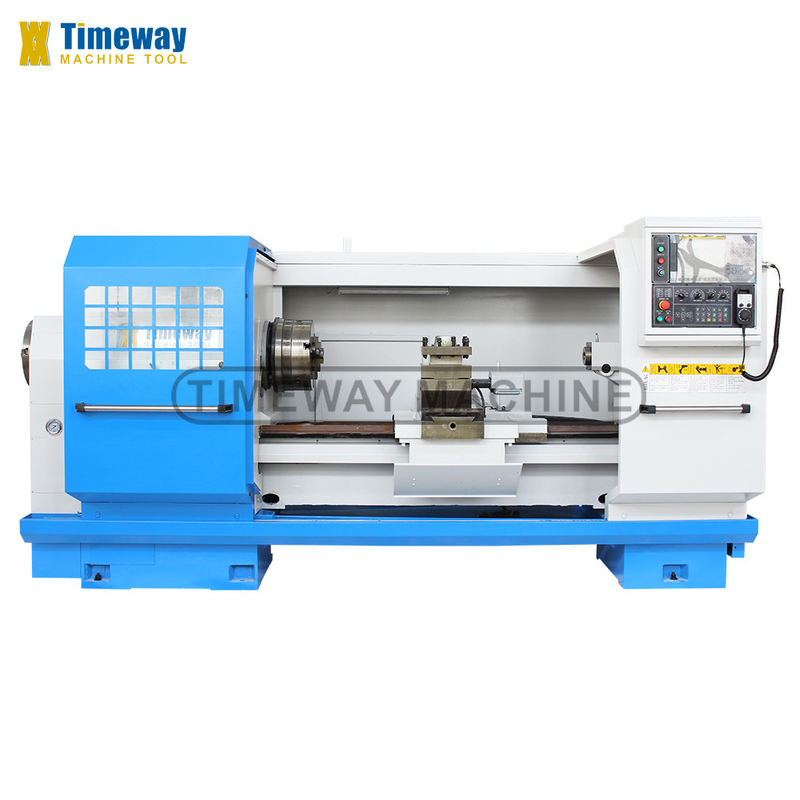

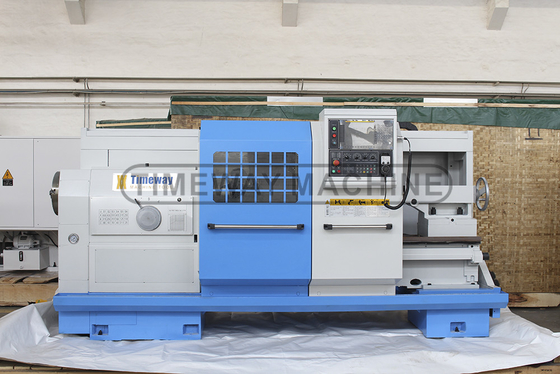

CNC Oil Country Lathe QK-130 Pipe Thread Lathe / CNC Machine Lathe For Industry Machinery
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | QK-130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 450 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 390 Mm | Travel (Z Axis)(mm): | 450 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.002 |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 7500 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Machine Type: | Lathe Machine CNC |
| Product Name: | CNC Lathe Mechine | Precision: | High Precision Machine |
| Color: | Customer Optional | Max. Swing Over Bed: | 800mm |
| Spindle Bore: | 130mm | Max. Length Of Workpiece: | 1000/1500/2000/3000mm |
| Keyword: | Automatic CNC Lathe Machine | Function: | Machining Metal |
| Condition: | New | Spindle Bore(mm): | 130 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | Egypt, Canada, United Kingdom, France, Germany, Viet Nam, Philippines, Indonesia, Mexico, Russia, Morocco, Chile, Romania, South Africa, Japan, Malaysia, None |
| Core Components: | Bearing, Motor, PLC, Engine | Year: | 2024 |
| Max. Spindle Speed (r.p.m): | 1000 R.p.m | Marketing Type: | Hot Product 2024 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:

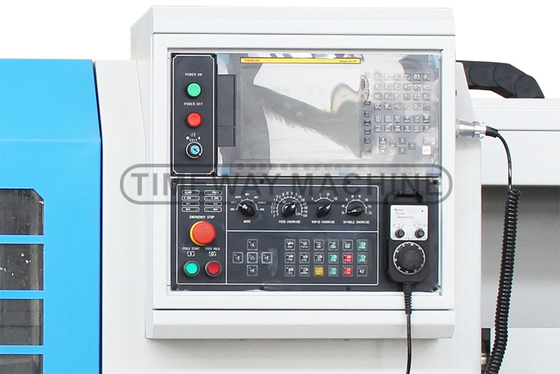

√ FANUC/SIEMENS/GSK CNC system
√ Big bore chuck (Front & Rear)√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Big bore chuck (Front & Rear)√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Automatic lubrication pump
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Automatic lubrication pump
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
OPTIONAL ACCESSORIES:
_ Pneumatic chuck
_ Other tool post
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
_ Other tool post
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
Specification
|
SPECIFICATION
|
UNIT
|
QK-130
|
|
Pipe threading range
|
mm
|
30-120
|
|
Max. swing over bed
|
mm
|
800
|
|
Max. swing over cross slide
|
mm
|
450
|
|
Max. length of workpiece
|
mm
|
1000/1500/2000/3000
|
|
Max. turning length
|
mm
|
800/1350/1800/2800
|
|
Bed width
|
mm
|
550
|
|
Spindle nose
|
-
|
C15
|
|
Spindle taper
|
-
|
Metric 140
|
|
Spindle bore
|
mm
|
130
|
|
Spindle center taper
|
-
|
MT6
|
|

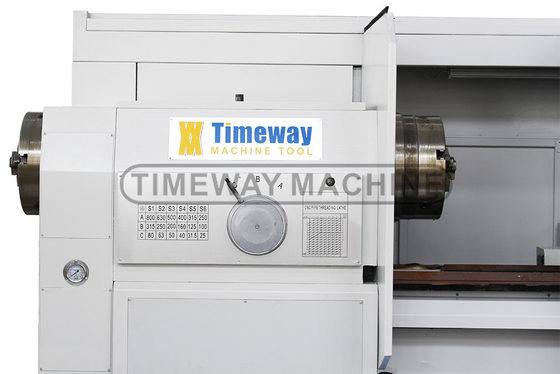

Spindle speed
|
rpm
|
20-1000 (manual 3steps)
|
|
Chuck size
|
mm
|
Φ380 (3-jaw)
|
|
Min. feed increment of X/Z-axis
|
mm
|
0.001/0.001
|
|
X/Z-axis rapid feed speed
|
m/min
|
3/6
|
|
X-axis travel
|
mm
|
390
|
|
Turret type
|
mm
|
V4, □240
|
|
Section of tool shank
|
mm
|
40x40
|
|
Indexing repeatility
|
mm
|
0.008
|
|
Max. cutting force
|
N
|
19600
|
|

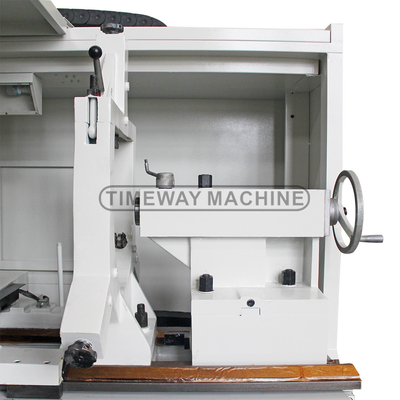

Tailstock quill diameter
|
mm
|
100
|
|
Tailstock quill travel
|
mm
|
250
|
|
Tailstock quill taper
|
-
|
MT5
|
|
Main motor power
|
kw
|
11
|
|
Working accuracy
|
um
|
IT6-IT7
|
|
Surface roughness
|
um
|
Ra1.6
|
|
Machine length
|
mm
|
3227/3677/4177/5177
|
|
Machine width
|
mm
|
1800
|
|
Machine height
|
mm
|
1850
|
