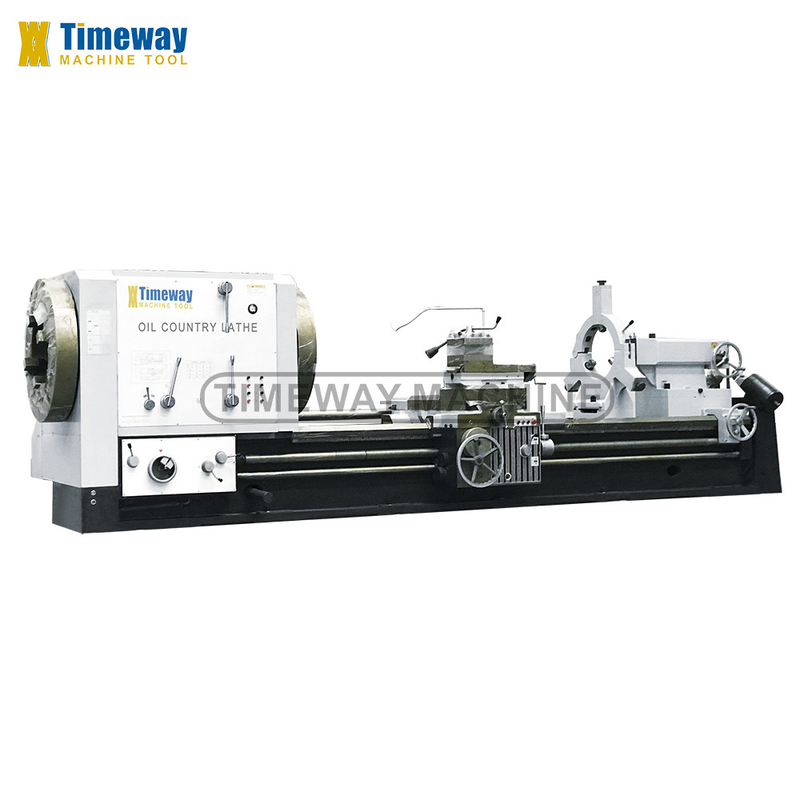

Q-360F Pipe Threading Lathe Max. Swing Over Cross Slide 610mm Spindle Bore 360mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | Q-360F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,880.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 30 - 260 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Weight (KG): | 12800 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Oil Country Lathe | Machine Type: | Horizontal Normal Lathe |
| Keyword: | Turning Machine | Function: | Machining Metal |
| Precision: | High Precision | Processing: | Metal Workpiece |
| Max. Swing Over Bed: | 1000mm | Max. Swing Over Cross Slide: | 610mm |
| Distance Between Centers: | 1500/3000mm | Bed Width: | 755mm |
| Condition: | New | Applicable Industries: | Building Material Shops, Construction Works , Energy & Mining |
| Showroom Location: | Canada, Turkey, Italy, Viet Nam, Philippines, Indonesia, India, Russia, Spain, Thailand, Colombia, Nigeria, Tajikistan, Japan, Australia | Core Components: | Pump, Gear, Motor |
| Spindle Bore(mm): | 360 | Max. Turned Length (mm): | 3000 Mm |
| Year: | 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description
Features:
1.After years of improvement and running-in, this pipe threading lathe is already a high-performance lathe with mature structure and stable performance.
2.The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so
on. At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.
1.After years of improvement and running-in, this pipe threading lathe is already a high-performance lathe with mature structure and stable performance.
2.The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so
on. At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.
Specification | Unit | Q-360F | ||
Max. swing over bed | mm | Φ1000 | ||
Max. swing over cross slide | mm | Φ610 | ||
Distance between centers | mm | 1500/3000 | ||
Bed width | mm | 755 | ||
Cross travel (X) | mm | 520 | ||
Longitudinal travel (Z) | mm | 1300/2800 | ||
Top tool post travel | mm | 300 | ||
Max. load capacity | kg | 6000 | ||
Spindle bore | mm | Φ360 | ||
Spindle speed steps | steps | VF 2 | ||
Spindle speed (stepless) | rpm | 30-260 | ||

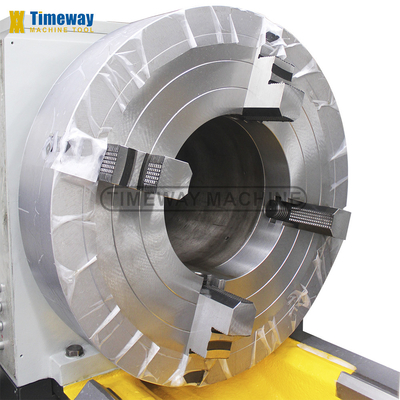

Chuck size | mm | Φ780 | ||
Chuck type | - | 4-jaw electric | ||
Turret type(manual) | - | V4 | ||
X-axis feed range(steps) | mm/r | 0.05-0.75 (32) | ||
X-axis rapid feed speed | mm/min | 1870 | ||
Z-axis feed range(steps) | mm/r | 0.1-1.5 (32) | ||
Z-axis rapid feed speed | mm/min | 3740 | ||
No. of Metric thread and range | mm | 1-15 (23) | ||
No. of Inch thread and range | TPI | 2-28 (22) | ||
Tailstock quill diameter | mm | Φ140 | ||
Tailstock quill taper | - | MT6 | ||
Tailstock quill travel | mm | 300 | ||
Main motor power | kw | 22 | ||
Machine dimensions (LxWxH) | mm | 5000/6500x2100x1800 | ||
Machine weight | kg | 12800/14300 | ||

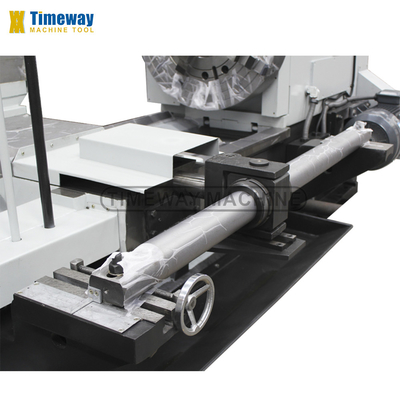

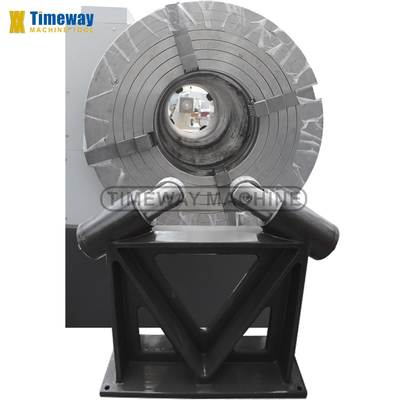

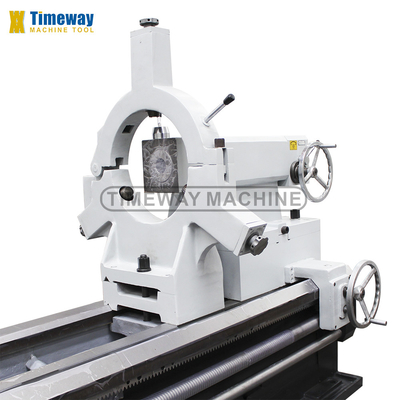

· Electric chuck · Follow rest · Dead center · 4-station tool post · Taper turning attachment · Cooling system · Work lamp · General tools · Leveling wedge and bolts · Operation manual (English) | · 2 or 3-axis DRO · Chuck guard · Too-post guard · Rear support for long pipe |
