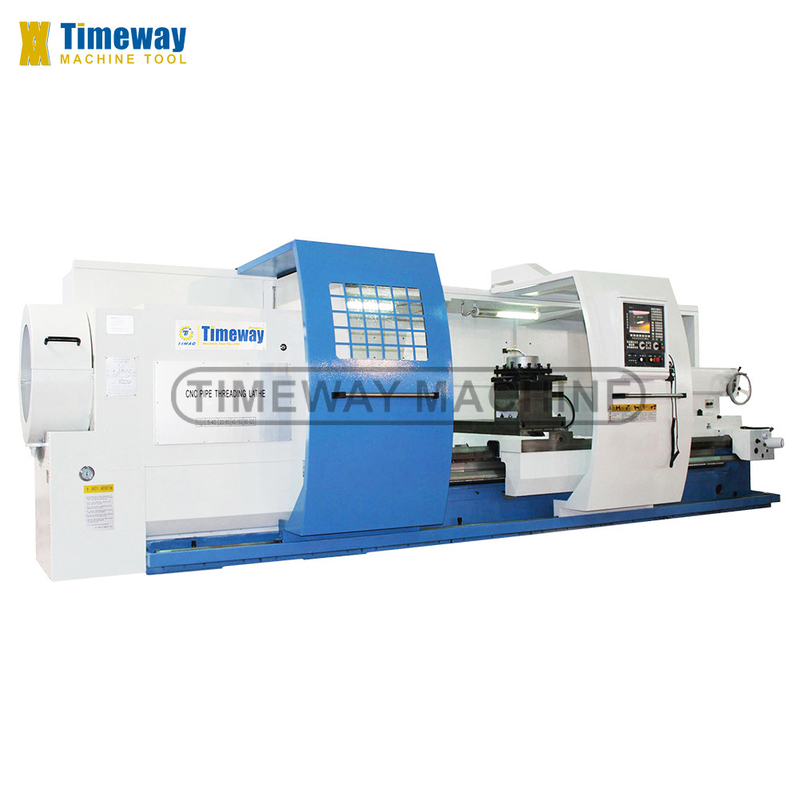

520mm Travel CNC Oil Country Lathe QK-390 for Industry Machinery and Pipe Thread Torno
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | QK-390 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,280.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 610 Mm | Spindle Motor Power(kW): | 22 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 520 Mm | Travel (Z Axis)(mm): | 610 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.002 |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 12000 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Machine Type: | Lathe Machine CNC |
| Product Name: | CNC Lathe Mechine | Precision: | High Precision Machine |
| Color: | Customer Optional | Max. Swing Over Bed: | 1000mm |
| Spindle Bore: | 390mm | Max. Length Of Workpiece: | 1500/3000mm |
| Keyword: | Automatic CNC Lathe Machine | Function: | Machining Metal |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining |
| Showroom Location: | Egypt, Canada, United Kingdom, France, Germany, Viet Nam, Philippines, Indonesia, Mexico, Russia, Morocco, Chile, Romania, South Africa, Japan, Malaysia, None | Core Components: | Bearing, Motor, PLC, Engine |
| Year: | 2024 | Max. Spindle Speed (r.p.m): | 205 R.p.m |
| Spindle Bore(mm): | 390 | Marketing Type: | Hot Product 2024 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:

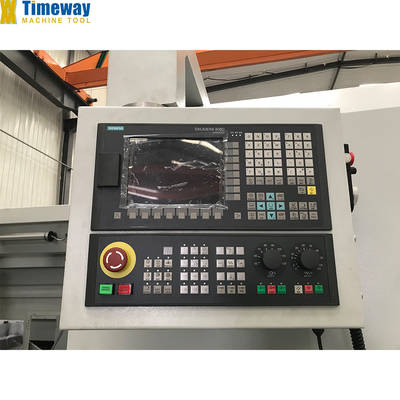

√ FANUC/SIEMENS/GSK CNC system
√ Big bore chuck (Front & Rear)√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Big bore chuck (Front & Rear)√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Automatic lubrication pump
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Automatic lubrication pump
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
OPTIONAL ACCESSORIES:
_ Pneumatic chuck
_ Other tool post
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
_ Other tool post
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
Specification
SPECIFICATION | UNIT | QK-390 |
Pipe threading range | mm | 190-380 |
Max. swing over bed | mm | 1000 |
Max. swing over cross slide | mm | 610 |
Max. length of workpiece | mm | 1500/3000 |
Max. turning length | mm | 1250/2750 |
Span of guideway | mm | 755 |
Spindle nose | - | Thread-type |
Spindle taper | - | - |
Spindle bore | mm | 390 |
Spindle center taper | - | - |
Spindle speed | rpm | 8-205 (manual 3) |
Chuck size | mm | Φ850 |
Min. feed increment of X/Z-axis | mm | 0.001/0.001 |
X/Z-axis rapid feed speed | m/min | 4/4 |
X-axis travel | mm | 520 |
Turret type | mm | V4 |
Section of tool shank | mm | 40x40 |
Indexing repeatility | mm | 0.008 |
Max. cutting force | N | 29400 |
Tailstock quill diameter | mm | 160 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
Main motor power | kw | 22 |
Working accuracy | um | IT6-IT7 |
Surface roughness | um | Ra1.6 |
Machine length | mm | 5000/6500 |
Machine width | mm | 2220 |
Machine height | mm | 2120 |
Machine weight | tons | 12/13 |
