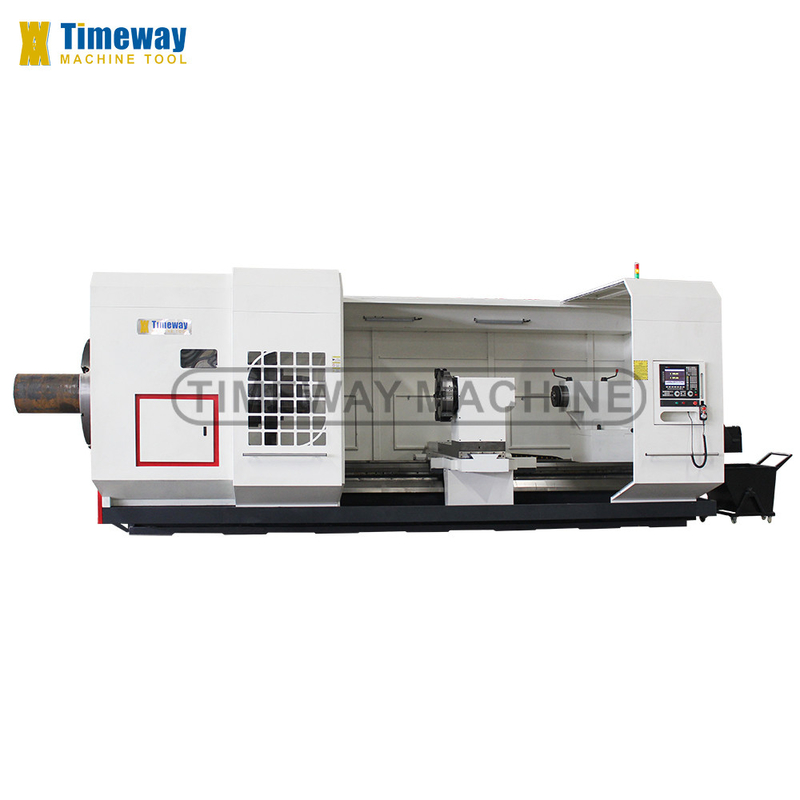

High Precision QK-550 CNC Oil Country Lathe CNC Machine Lathe for Pipe Thread Torno
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | QK-550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 5000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 1100 Mm | Spindle Motor Power(kW): | 37 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 850 Mm | Travel (Z Axis)(mm): | 900 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.002 |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 17800 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Machine Type: | Lathe Machine CNC |
| Product Name: | CNC Oil Country Lathe | Precision: | High Precision Machine |
| Color: | Customer Optional | Max. Swing Over Bed: | 1250mm |
| Spindle Bore: | 550mm | Max. Length Of Workpiece: | 1500/3000/5000mm |
| Keyword: | Automatic CNC Lathe Machine | Function: | Machining Metal |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Canada, United Kingdom, France, Germany, Viet Nam, Philippines, Indonesia, Mexico, Russia, Morocco, Chile, Romania, South Africa, Japan, Malaysia, None | Core Components: | Bearing, Motor, PLC, Engine |
| Year: | 2024 | Max. Spindle Speed (r.p.m): | 258 R.p.m |
| Spindle Bore(mm): | 550 | Marketing Type: | Hot Product 2024 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:

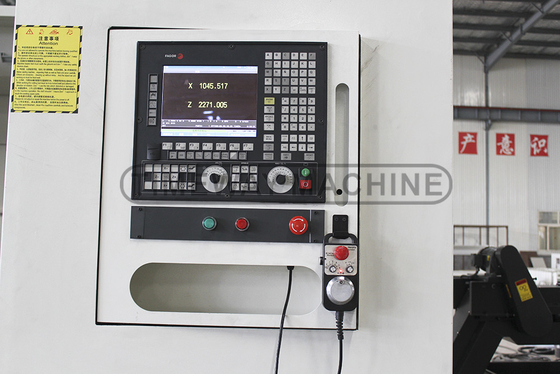

√ FANUC/SIEMENS/GSK CNC system

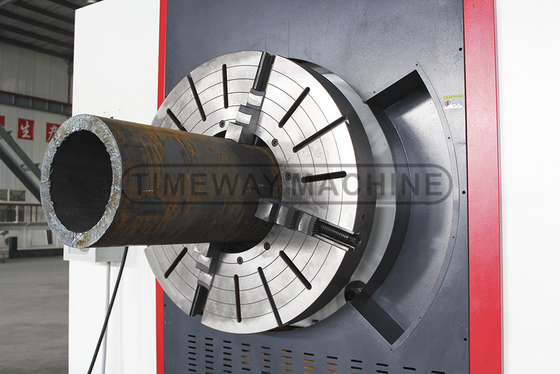

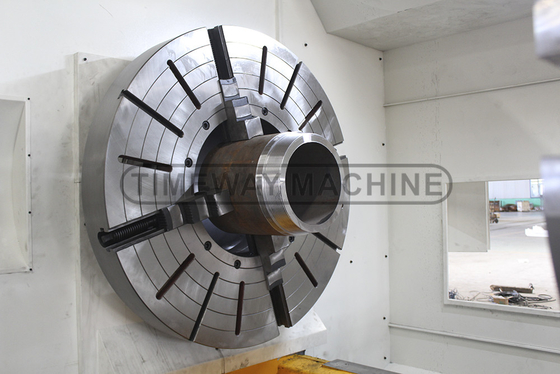

√ Big bore chuck (Front & Rear)√ Dead centers

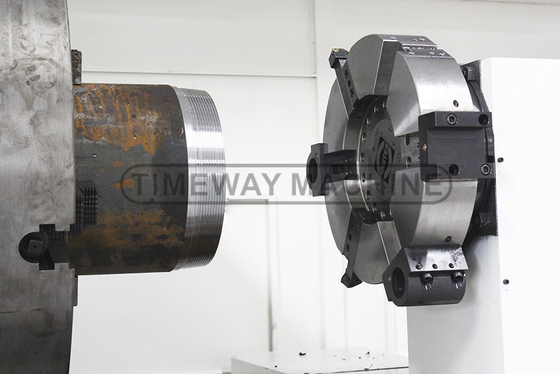

√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Big bore chuck (Front & Rear)√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Automatic lubrication pump
√ Oil gun

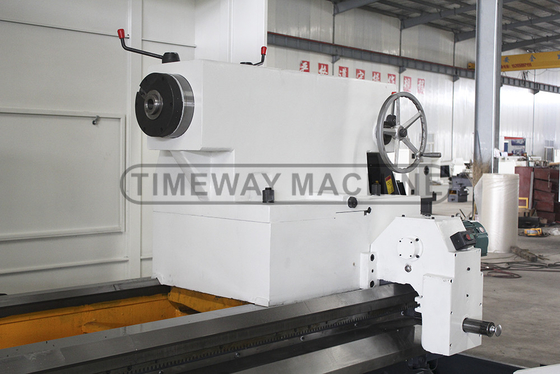

√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Automatic lubrication pump
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
OPTIONAL ACCESSORIES:
_ Pneumatic chuck
_ Other tool post
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
_ Other tool post
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
Specification
SPECIFICATION | UNIT | QK-550 |
Pipe threading range | mm | 330-550 |
Max. swing over bed | mm | 1250 |
Max. swing over cross slide | mm | 900 |
Max. length of workpiece | mm | 1500/3000/5000 |
Max. turning length | mm | 1300/2850/4850 |
Span of guideway | mm | 1100 |
Spindle nose | - | A2-28 |
Spindle bore | mm | 550 |
Spindle speed | rpm | 23-258 (2) |
Chuck size | mm | 1250 |
Min. feed increment of X/Z-axis | mm | 0.001/0.001 |
X/Z-axis rapid feed speed | m/min | 4/6 |
X-axis travel | mm | 850 |
Turret type | mm | V4 |
Section of tool shank | mm | 50x50 |
Indexing repeatility | mm | 0.008 |
Max. cutting force | N | 39200 |
Tailstock quill diameter | mm | 260 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | Metric 80 |
Main motor power | kw | 37 |
Working accuracy | um | IT6-IT7 |
Surface roughness | um | Ra1.6 |
Machine length | mm | 5500/7000/9000 |
Machine width | mm | 3200 |
Machine height | mm | 2800 |
Machine weight | tons | 17.8/19/23 |
