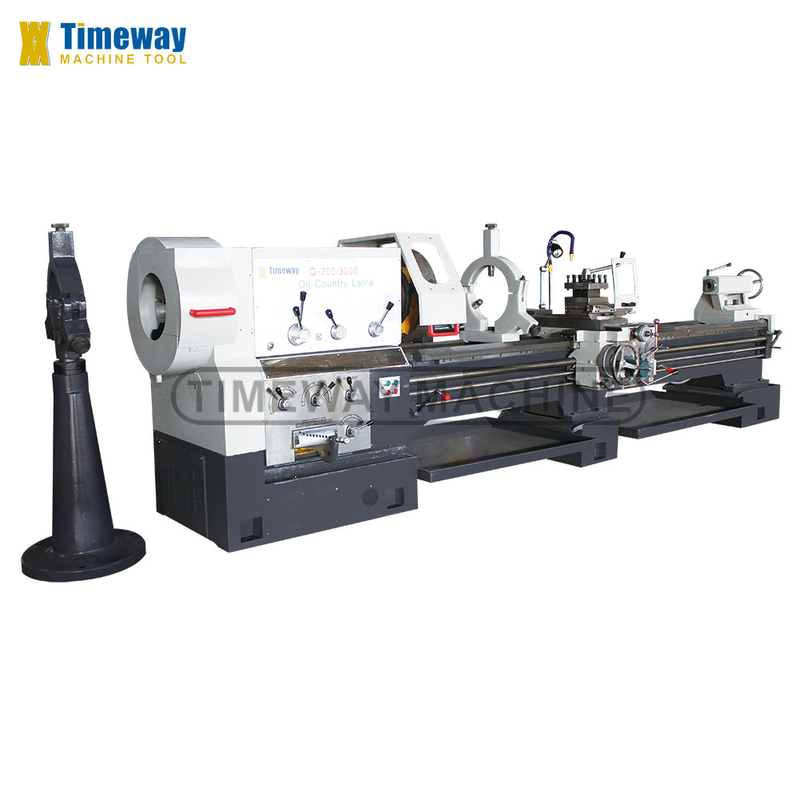

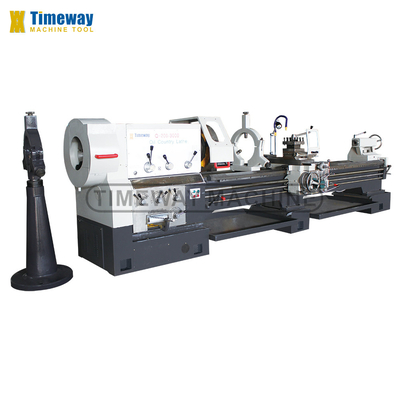

11kW Spindle Motor Power Q-200 Pipe Thread Lathe Machine for Various Applications
Product Details:
| Place of Origin: | China |
| Certification: | CE |
| Model Number: | Q-200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 20 - 480 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 193 |
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Dimension(L*W*H): | 3700 1550 1550 | Weight (KG): | 4300 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Horizontal Metal Turning Lathe Machine | Product Name: | Manual Metal Lathe Machine |
| Keyword: | Universal Metal Lathe | After-sales Service Provided: | Online Services |
| Precision: | High Precision High Accuracy | Processing: | Metal Workpiece |
| Spindle Bore: | 200mm | Max. Swing Over Bed: | 630mm |
| Distance Between Centers: | 1500mm | Condition: | New |
| Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia | Spindle Bore(mm): | 200 |
| Max. Turned Length (mm): | 1500 Mm | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Max. swing over bed | mm | 630/800 |
Max. swing over cross slide | mm | 340/520 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 50-193 |
Bed width | mm | 550 |
X-axis travel | mm | 320/420 |
Z-axis travel | mm | 1350/2850 |
Loading capacity | kg | 3000 |
Spindle bore | mm | 200 |
Spindle speed steps | steps | CCW: 12/CW: 9 |
Spindle speed | rpm | 20-480 |
Chuck size | mm | 520 |

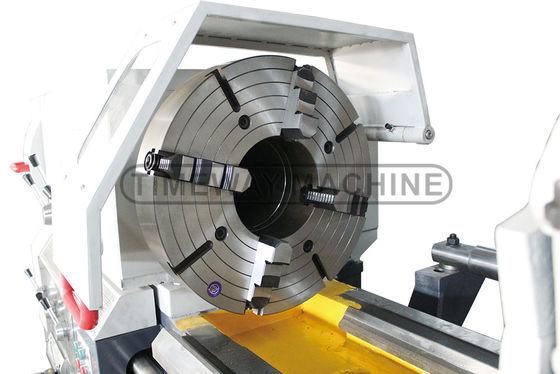

Chuck type (manual) | - | 4-jaw |
Turret type (manual) | - | V4 |
Tool shank size | mm | 32x32 |
X-axis feed range (steps) | mm/r | 0.02-0.45 (22) |
X-axis rapid feed speed | mm/min | 2300 |
Z-axis feed range (steps) | mm/r | 0.07-1.33 (26) |
Z-axis rapid feed speed | mm/min | 4000 |
No. of Metric thread and range | mm | 1-14 (24) |
No. of Inch thread and range | TPI | 28-2 (40) |
Tailstock quill diameter | mm | 100 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 250 |
Main motor power | kw | 11 |
Rapid feed motor power | kw | 0.3 |
Coolant motor power | kw | 0.125 |
Machine dimensions (LxWxH) | mm | 3700/5200x1550x1550 |
Machine weight | kg | 4300/5500 |
STANDARD ACCESSORIES:

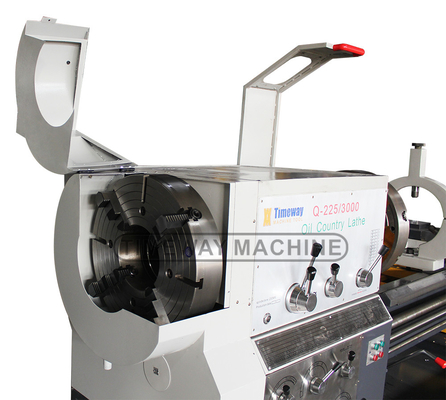

Big bore chuck (Front & Rear), Dead center, 4-station tool post, General tools, Leveling wedge and bolts, Operation manual (English), etc.
OPTIONAL ACCESSORIES:

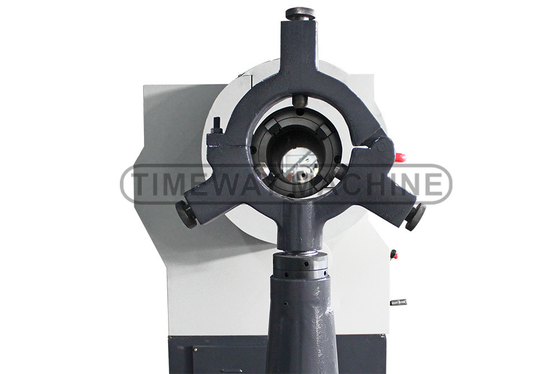

2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Rear support for long pipe.
