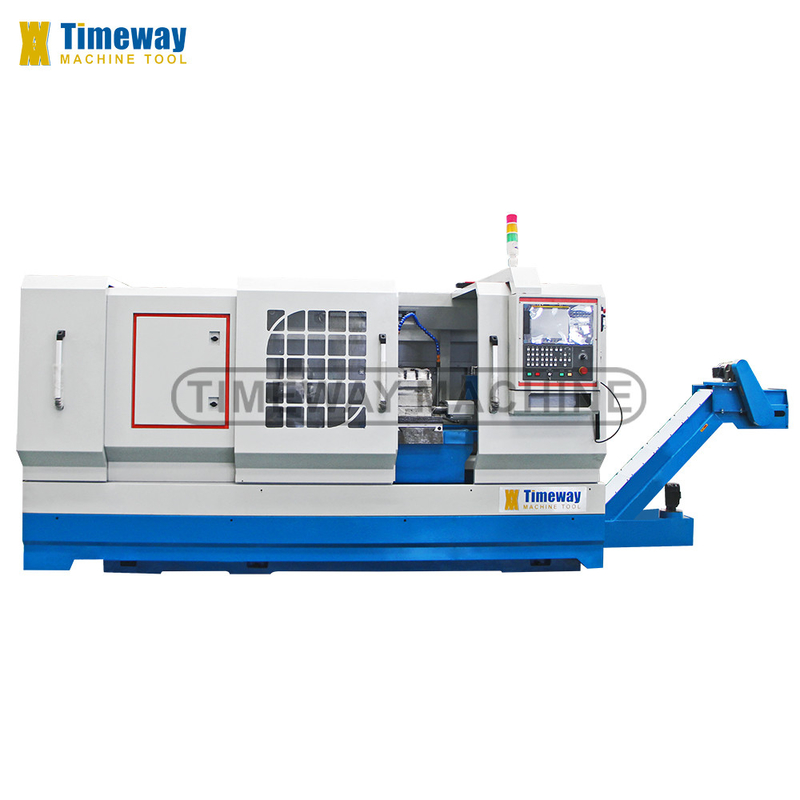

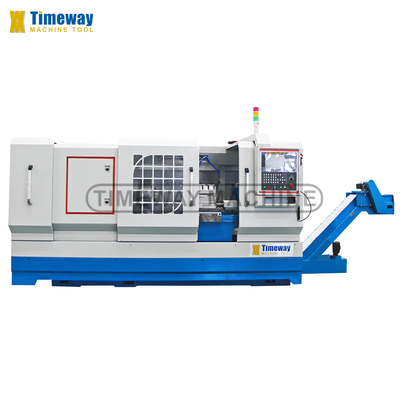

State-of-the-Art CNC Oil Country Lathe Machine for Flat Bed Lathe Structure

State-of-the-Art CNC Oil Country Lathe Machine for Flat Bed Lathe Structure

Product Details:

Place of Origin: China
Model Number: QK-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $22,666.00/sets 1-2 sets
Get Best Price Contact Now

Detail Information
Type: Horizontal Max. Length Of Workpiece (mm): 1500
Structure: Flat Bed Lathe Machining Capacity: Light Duty
Width Of Bed (mm): 190 Mm Spindle Motor Power(kW): 11
No. Of Spindles: Single Number Of Axes: 2
Travel (X Axis)(mm): 390 Mm Travel (Z Axis)(mm): 1150 Mm
Dimension(L*W*H): 3677 1800 1850 CNC Control System: FANUC
Tool Post Stations: 6 Weight (KG): 5100
Warranty: 1 Year Key Selling Points: Automatic
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year CNC Or Not: CNC
Machine Type: Lathe Machine CNC Product Name: CNC Lathe Mechine
Keyword: Automatic CNC Lathe Machine Function: Machining Metal
Precision: High Precision Machine Max. Swing Over Bed: 800mm
Spindle Bore: 200mm Distance Between Centers: 1500mm
Name: Cnc Oil Country Lathe Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other
Showroom Location: Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia Core Components: Other
Max. Spindle Speed (r.p.m): 600 R.p.m Spindle Bore(mm): 200
Max. Turned Length (mm): 1350 Marketing Type: Hot Product

Product Description

Product Description
State-of-the-Art CNC Oil Country Lathe Machine for Flat Bed Lathe Structure 0
Specification
Specifications
UNIT
QK200
Pipe threading range
mm
50-190
Max. swing over bed
mm
800
Max. swing over cross slide
mm
450
Max. length of workpiece
mm
1000/1500/2000/3000
Max. turning length
mm
800/1350/1800/2800
Bed width
mm
550
Spindle nose
-
C15
Spindle taper
-
Metric 213
Spindle bore
mm
200
Spindle center taper
-
MT6
Spindle speed
rpm
20-600 (manual 2steps)
Chuck size
mm
Φ500 (3-jaw)
Min. feed increment of X/Z-axis
mm
0.001/0.001
X/Z-axis rapid feed speed
m/min
3/6
X-axis travel
mm
390
Turret type
mm
V4, □240
Section of tool shank
mm
40x40
Indexing repeatility
mm
0.008
Max. cutting force
N
19600
Tailstock quill diameter
mm
100
Tailstock quill travel
mm
250
Tailstock quill taper
-
MT5
Main motor power
kw
11
Working accuracy
um
IT6-IT7
Surface roughness
um
Ra1.6
Machine length
mm
3227/3677/4177/5177
Machine width
mm
1800
Machine height
mm
1850
Machine weight
kg
4300/5500

STANDARD ACCESSORIES:

FANUC/GSK/SIEMENS CNC system, 4-station electric tool-post, Work lamp, etc.

OPTIONAL ACCESSORIES:

Penumatic chuck, Other tool-post, Chip conveyor, Air conditioner, Rear support for long pipe.
