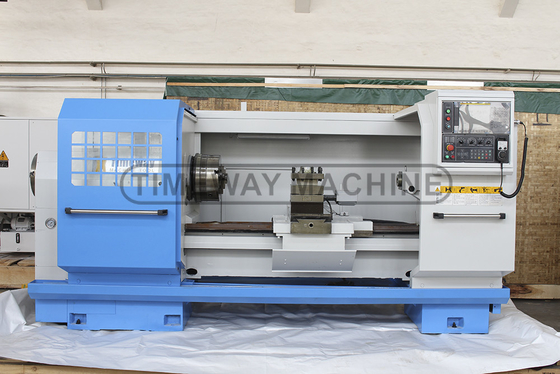

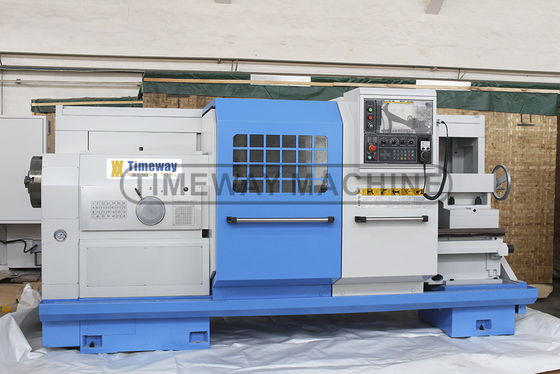

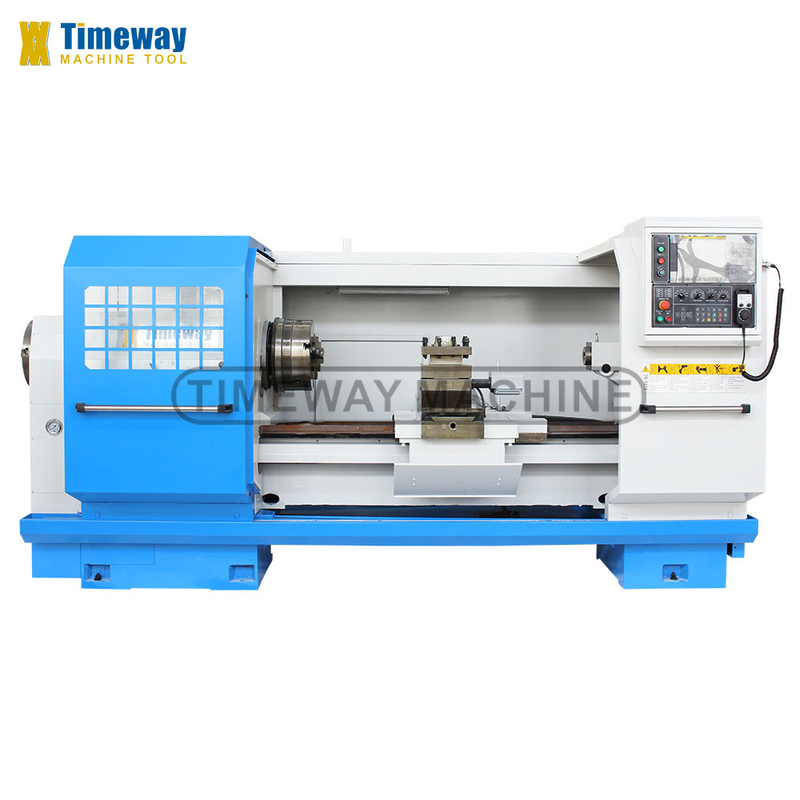

Timeway High Precision Q-130 Pipe Threading Turning Lathe for Metal in Energy Mining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | Q-130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,988.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 30 - 650 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 11 | Dimension(L*W*H): | 3700/5200x1500x1500mm |
| Weight (KG): | 4000 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Manual Lathe Machine |
| Machine Type: | Horizontal Normal Lathe | Product Name: | Manual Metal Lathe Machine |
| Precision: | High Precision | Distance Between Centers: | 1500mm/3000mm |
| Max. Swing Over Bed: | 630/800mm | Spindle Speed: | 30-650rpm |
| Spindle Bore: | 130mm | Max. Swing Over Cross Slide: | 340/520mm |
| Machine Weight: | 4000/5200kg | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Canada, United States, Italy, France, Germany, Viet Nam, Peru, India, Russia, Spain, Thailand, Japan, Malaysia, Australia | Core Components: | Motor, Engine |
| Max. Turned Length (mm): | 3000 Mm | Year: | 2024 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
Specification
STANDARD ACCESSORIES:
√ Big bore chuck (Front & Rear)
√ Dead centers
√ 4-station electric tool-post
√ 4-station electric tool-post
√Taper turning attachment
√ Cooling system
√ Work lamp
√ Chip collecting plate
√ General tools
√ Leveling wedge & bolts
√ Operation manual (English)
√ Work lamp
√ Chip collecting plate
√ General tools
√ Leveling wedge & bolts
√ Operation manual (English)
OPTIONAL ACCESSORIES:
_ 2 or 3-axis DRO
_ Chuck guard
_ Tool-post guard
_ Rear splash guard
_ Rear support for long pipe
_ Chuck guard
_ Tool-post guard
_ Rear splash guard
_ Rear support for long pipe
SPECIFICATION | UNIT | Q-130 |
Max. swing over bed | mm | 630/800 |
Max. swing over cross slide | mm | 340/520 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 30-126 |
Bed width | mm | 550 |
X-axis travel | mm | 320/420 |
Z-axis travel | mm | 1350/2850 |
Loading capacity | kg | 3000 |
Spindle bore | mm | 130 |
Spindle speed step | steps | CCW:18/CW:9 |
Spindle speed | rpm | 30-650 |
Chuck size | mm | 400 |
Chuck type(manual) | - | 4-jaw |
Turret type(manual) | - | V4 |
Tool shank size | mm | 30x30 |
X-axis feed range(steps) | mm/r | 0.02-0.45(22) |
X-axis rapid feed speed | mm/min | 2300 |
Z-axis feed range(steps) | mm/r | 0.07-1.33(26) |
Z-axis rapid feed speed | mm/min | 4000 |
No. of Metric thread and range | mm | 1-24(52) |
No. of Inch thread and range | TPI | 2-28(40) |
Tailstock quill diameter | mm | 100 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 250 |
Main motor power | kw | 11 |
Rapid feed motor power | kw | 0.3 |
Coolant motor power | kw | 0.125 |
Machine dimensions(LxWxH) | mm | 3700/5200x1500x1500 |
Machine weight | kg | 4000/5200 |
