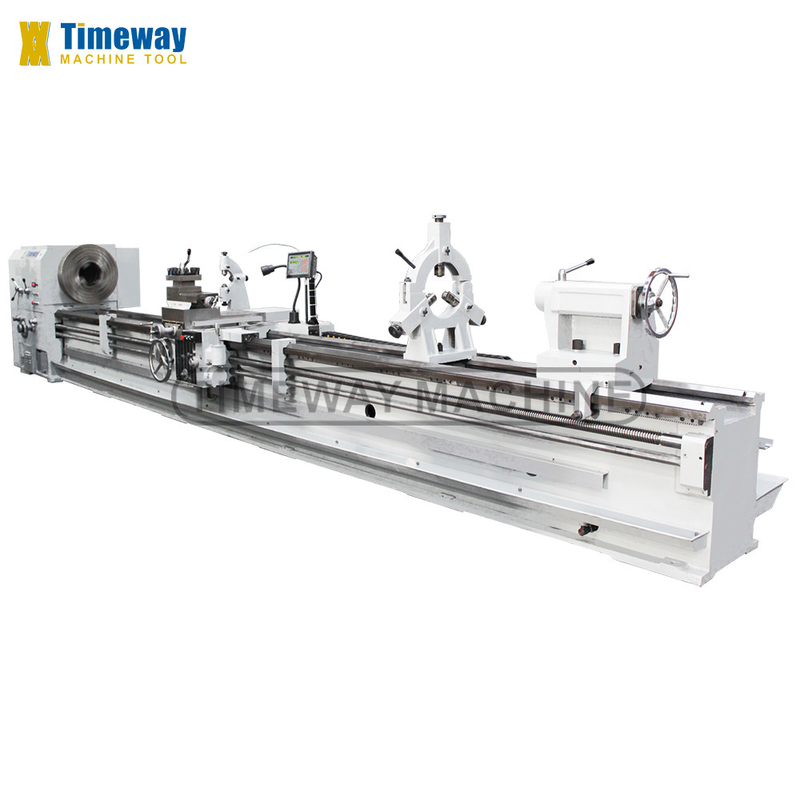

Precision Oil Country Lathe for Heavy Duty Pipe Threading in Building Material Shops
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | Q-305F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | Horizontal | Spindle Motor Power(kW): | 15 |
| Weight (KG): | 7700 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Oil Country Lathe |
| Machine Type: | Horizontal Normal Lathe | Keyword: | Turning Machine |
| Function: | Machining Metal | Precision: | High Precision |
| Processing: | Metal Workpiece | Distance Between Centers: | 1000/1500/2000/3000mm |
| Swing Over Bed: | 800mm | Swing Over Cross Slide: | 480mm |
| Pipe Threading Range: | 70-300mm | Condition: | New |
| Applicable Industries: | Building Material Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, Turkey, Italy, Viet Nam, Philippines, Indonesia, India, Russia, Spain, Thailand, Colombia, Nigeria, Tajikistan, Japan, Australia |
| Core Components: | Gear, Motor | Spindle Bore(mm): | 305 |
| Max. Turned Length (mm): | 3000 Mm | Year: | 2024 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description
Features:
1.This machine was designed for use in often harsh and demanding environment associated with OCTG production and integrates decadesof experience.
2.Lathe adopts standard cast iron (HT300) a molding casting, after the second aging treatment, it has feature of stable performance;guide-way width (550/600/650mm), good rigidity, anti-vibration ability; Processed by ultrasonic frequency hardening and machined by theimported guideway rail grinding machine, to ensure a long service life.

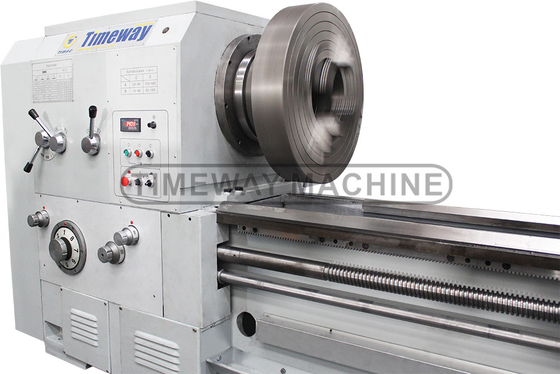

3.The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle.
4.Hardened and precision ground spindle adopts two support structure with high-precision grade bearings, to ensure spindle running stable.
5.Pipe threading lathe with large spindle bore and double hollow chuck on both ends of spindle for long pipes.

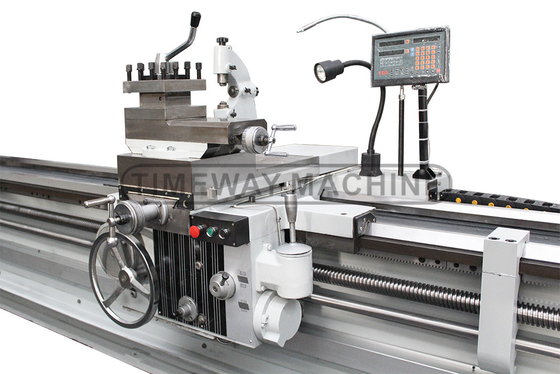

7.Equipped with rapid feed motor for X/Z-axis quickly positioning, reduce operating intensity and machining assistance time, improve machining efficiency.

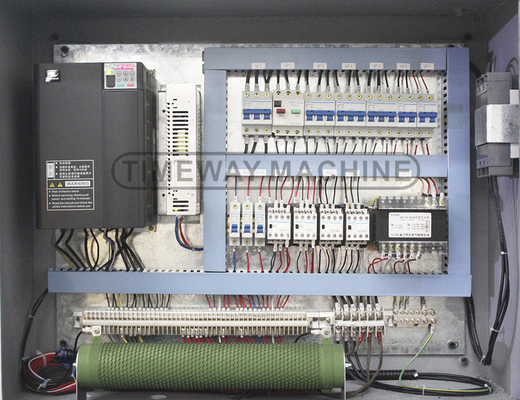

8.Spindle driven by variable frequency motor with interver, realize manual 2steps speed change, within steps variable speed (stepless).
9.Wide spindle speed range for choosing reasonable speed, various steps feed speed for meeting different processing process and threads cutting.
10.The lathe machine is mainly developed for the turning of oil field pipe thread, it is not only suitable for all kinds of pipe
thread turning, but also can be used as ordinary lathe, suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face. Especially for multi-species, small batch of turning processing.
1.This machine was designed for use in often harsh and demanding environment associated with OCTG production and integrates decadesof experience.
2.Lathe adopts standard cast iron (HT300) a molding casting, after the second aging treatment, it has feature of stable performance;guide-way width (550/600/650mm), good rigidity, anti-vibration ability; Processed by ultrasonic frequency hardening and machined by theimported guideway rail grinding machine, to ensure a long service life.
3.The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle.
4.Hardened and precision ground spindle adopts two support structure with high-precision grade bearings, to ensure spindle running stable.
5.Pipe threading lathe with large spindle bore and double hollow chuck on both ends of spindle for long pipes.
6.Equipped with taper turning attachment, can automatic feed turning inner an outer cone surface and threads.
7.Equipped with rapid feed motor for X/Z-axis quickly positioning, reduce operating intensity and machining assistance time, improve machining efficiency.
8.Spindle driven by variable frequency motor with interver, realize manual 2steps speed change, within steps variable speed (stepless).
9.Wide spindle speed range for choosing reasonable speed, various steps feed speed for meeting different processing process and threads cutting.
10.The lathe machine is mainly developed for the turning of oil field pipe thread, it is not only suitable for all kinds of pipe
thread turning, but also can be used as ordinary lathe, suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face. Especially for multi-species, small batch of turning processing.
· Big bore chuck (Front & Rear) · Dead center · 4-station tool post · Taper turning attachment · Cooling system · Work lamp · Chip collecting plate · General tools · Leveling wedge and bolts · Operation manual (English) | · 2 or 3-axis DRO · Chuck guard · Too-post guard · Rear splash guard · Rear support for long pipe |
Specification | Unit | Q-305F | ||
Swing over bed | mm | Φ800 | ||
Swing over cross slide | mm | Φ480 | ||
Distance between centers | mm | 1000/1500/2000/3000 | ||
Pipe threading range | mm | Φ70-300 | ||
Width of bed way | mm | 600 (Opt. 650) | ||
Spindle bore | mm | Φ305 | ||
Spindle speed steps | - | VF.2steps | ||
Spindle speed range | rpm | 20-100,100-300 | ||
Chuck size | mm | Φ780 | ||
Chuck type | - | 4-jaw manual | ||
Turret type | - | Manual 4 position | ||
Tool shank | mm | 40x40 | ||
X axis travel | mm | 520 | ||
Z axis travel | mm | 800/1300/1800/2800 | ||
X axis rapid traverse speed | mm/min | 1870 | ||
Z axis rapid traverse speed | mm/min | 3740 | ||
X axis feed grade/range | mm/r | 32/0.095-14 | ||
Z axis feed grade/range | mm/r | 32/0.095-14 | ||

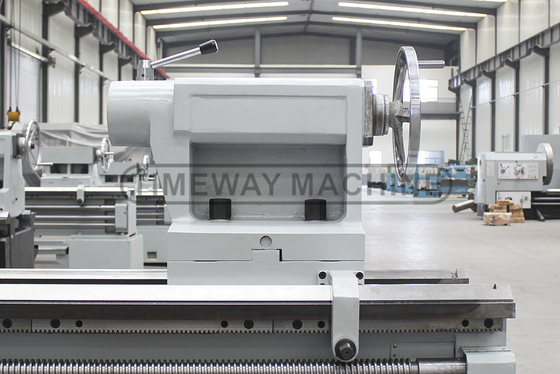

Tailstock quill diameter | mm | Φ140 | ||
Tailstock quill taper | - | MT6 | ||
Tailstock quill travel | mm | 250 | ||
Main spindle motor power | kw | 15 | ||
Rapid traverse motor power | kw | 1.5 | ||
Coolant pump motor power | kw | 0.125 | ||
Metric thread grade/range | mm | 22 / 1-15 | ||
Inch thread grade/range | T.P.I | 26 / 14-1 | ||
Machine length | mm | 3700/4200/4700/5700 | ||
Machine width/machine height | mm | 1700x1600 | ||
Machine weight | kg | 7700/8300/9000/10000 | ||
