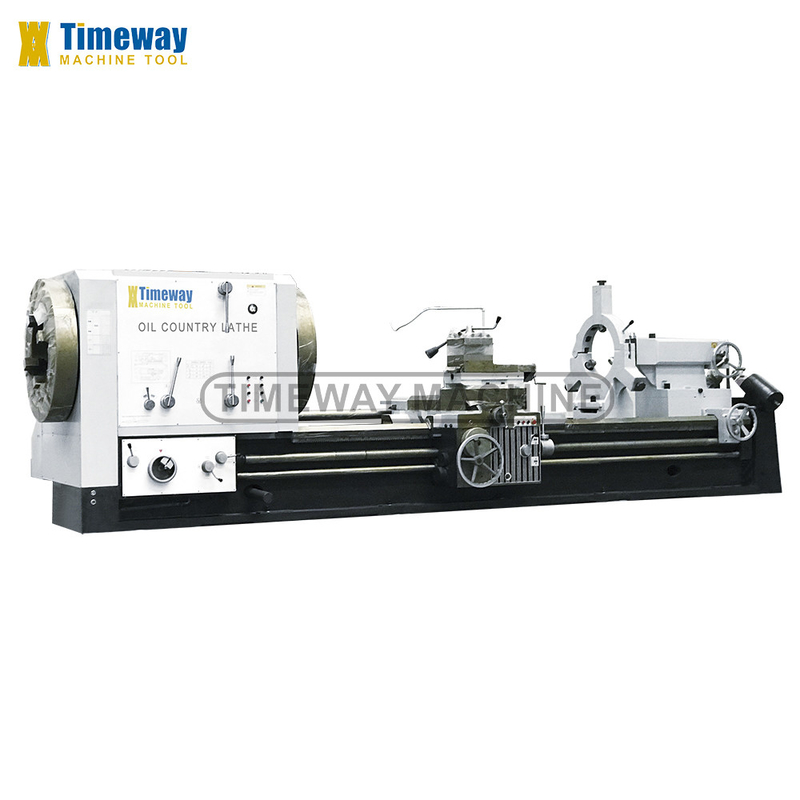

1200mm Max. Swing over Bed Oil Country Pipe Thread Lathe Q-520 for Your Requirements
Product Details:
| Place of Origin: | China |
| Certification: | CE |
| Model Number: | Q-520 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 4.9 - 180 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 755 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Dimension(L*W*H): | 5000x2100x1800 | Weight (KG): | 15000 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Manual Metal Lathe Machine | Keyword: | Universal Metal Lathe |
| After-sales Service Provided: | Online Services | Spindle Bore: | 520mm |
| Max. Swing Over Bed: | 1200mm | Loading Capacity: | 6000kg |
| Usage: | Metal Processing Lathe Machine | Precision: | High Precision Lathe |
| Distance Between Centers: | 1500mm | Condition: | New |
| Showroom Location: | Italy | Spindle Bore(mm): | 520 |
| Max. Turned Length (mm): | 1500 Mm | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Specificayions | unit | Q-520 |
Max. swing over bed | mm | 1200 |
Max. swing over cross slide | mm | 710 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 330-510 |
Bed width | mm | 755 |
X-axis travel | mm | 520 |
Z-axis travel | mm | 1350/2850 |
Max. load capacity | kg | 6000 |
Spindle bore | mm | 520 |
Spindle speed steps | steps | 9 |
Spindle speed | rpm | 4.9-180 |
Chuck size | mm | 1000 |
Chuck type | - | 4-jaw electric |
Turret type (manual) | - | V4 |
Tool shank size | mm | 45x45 |
X-axis feed range (steps) | mm/r | 0.05-0.75 (32) |
X-axis rapid feed speed | mm/min | 1870 |
Z-axis feed range (steps) | mm/r | 0.1-1.5 (32) |
Z-axis rapid feed speed | mm/min | 3740 |
No. of Metric thread and range | mm | 1-15 (23) |
No. of Inch thread and range | TPI | 2-28 (22) |
Tailstock quill diameter | mm | 160 |
Tailstock quill taper | - | MT6 |
Tailstock quill travel | mm | 300 |
Main motor power | kw | 22 |
Rapid motor power | kw | 1.5 |
Coolant motor power | kw | 0.125 |
Machine dimensions (LxWxH) | mm | 5000/6500x2100x1800 |
Machine weight | kg | 15000/16500 |
STANDARD ACCESSORIES:

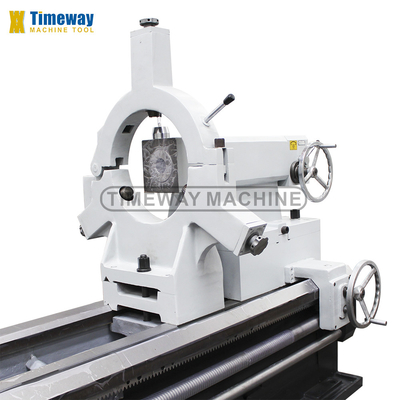

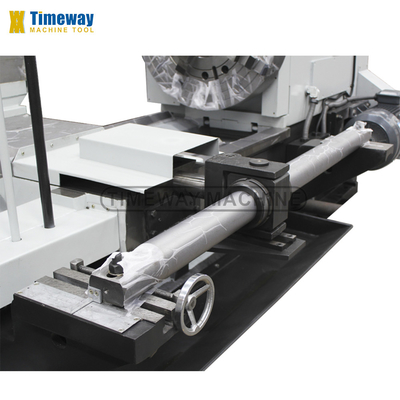

Electric chuck, Follow rest, Dead center, 4-station tool post, Taper turning attachment, Cooling system, Work lamp, General tools, Leveling wedge and bolts, Operation manual (English).
OPTIONAL ACCESSORIES:

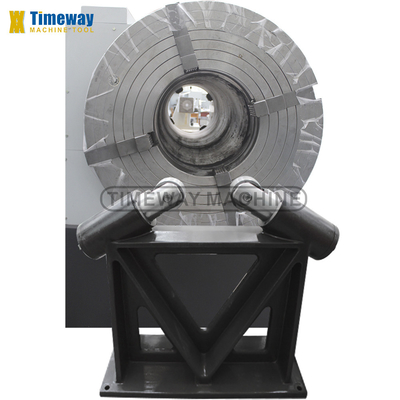

2 or 3-axis digital indicator, Chuck guard, Tool-post guard, Rear support for long pipe.
