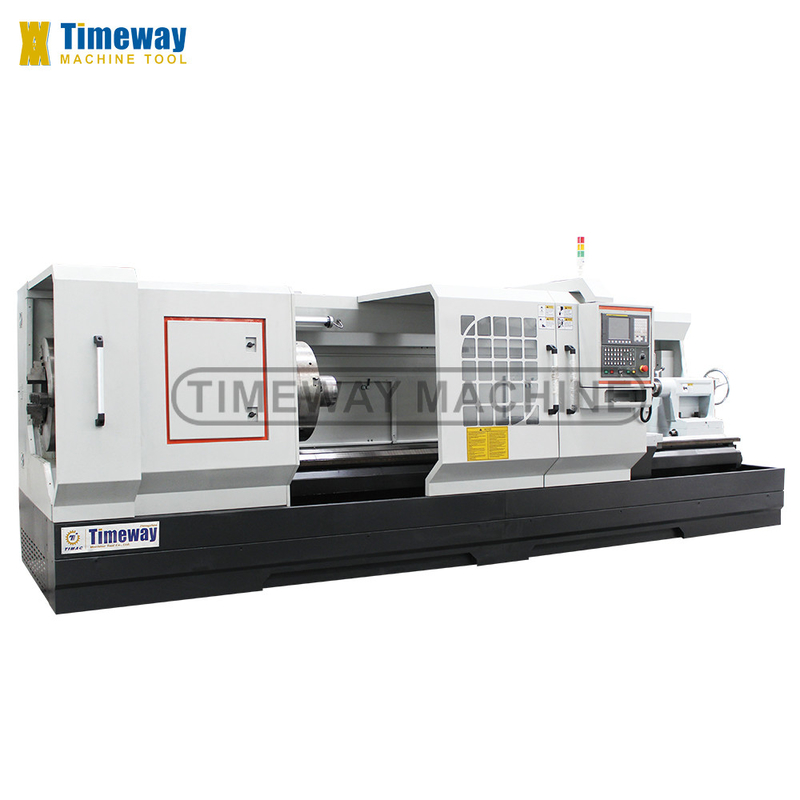

280mm Spindle Bore Automatic Oil Country Pipe Thread Lathe QK-280F for Metal Machining
Product Details:
| Place of Origin: | China |
| Certification: | CE |
| Model Number: | QK-280F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 20 - 420 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 600 |
| Type: | Horizontal | Spindle Motor Power(kW): | 15 |
| Dimension(L*W*H): | 3600x1930x1900 | Weight (KG): | 6200 KG |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Horizontal Metal Turning Lathe Machine | Product Name: | Manual Metal Lathe Machine |
| Keyword: | Lathe Machine Tool | After-sales Service Provided: | Online Services |
| Precision: | High Precision High Accuracy | Product Type: | Function Lathe |
| Function: | Machining Metal | Processing: | Metal Workpiece |
| Processing Types: | Metal Processing Machine | Condition: | New |
| Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia | Spindle Bore(mm): | 280 |
| Max. Turned Length (mm): | 1000 Mm | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Specifications | unit | QK280F |
Capacity | ||
Swing over bed | mm | 800 |
Swing over cross slide | mm | 480 |
Distance between centers | mm | 1000/1500/3000 |
Pipe threading range | mm | 130-270 |
Bed width | mm | 600 |
Max. load capacity | kg | 4000 |
Spindle | ||
Spindle bore | mm | 280 |
Spindle speed steps | steps | 4steps (inverter) |
Spindle speed | rpm | 20-420 |
Chuck size | mm | 630 |
Chuck type (manual) | - | 4-jaw |
Turret | ||

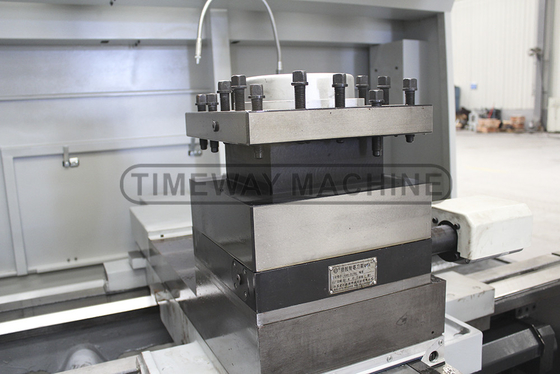

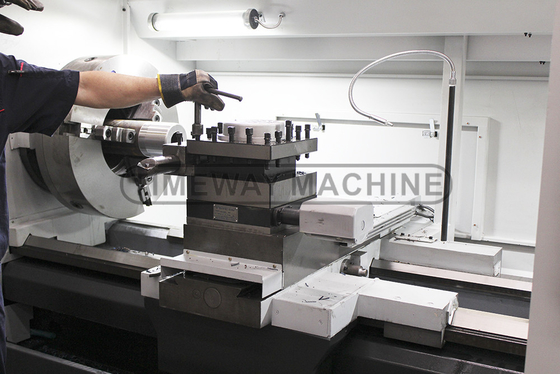

Turret type (electric) | - | V4 |
Tool shank size | mm | 32x32 |
Feed | ||
X-axis travel | mm | 420 |
Z-axis travel | mm | 850/1350/2850 |
X-axis rapid feed speed | mm/min | 4000 |
Z-axis rapid feed speed | mm/min | 6000 |

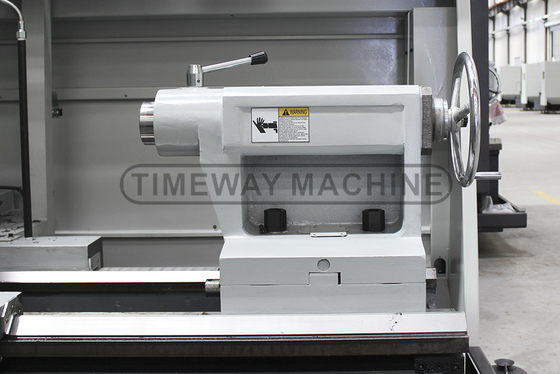

Tailstock | ||
Tailstock quill diameter | mm | 120 |
Tailstock quill taper | MT6 | |
Tailstock quill travel | mm | 250 |
Others | ||
Main motor power | kw | 15 |
Coolant motor power | kw | 0.125 |
Machine dimensions | mm | 3600/4100/5600x1930x1900 |
Machine weight | kg | 6200/6700/7700 |
STANDARD ACCESSORIES:

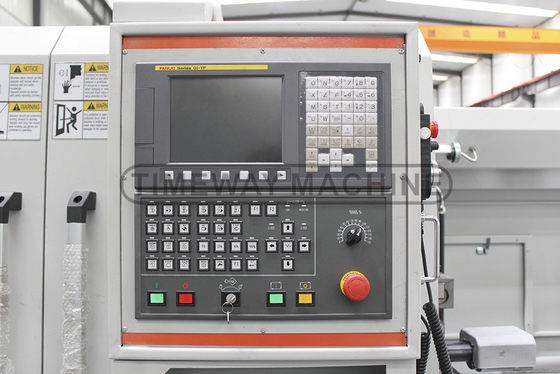

FANUC/GSK/SIEMENS CNC system, Big bore chuck (Front & Rear), 4-station electric tool-post, Work lamp, etc.
OPTIONAL ACCESSORIES:
Penumatic chuck, Other tool-post, Chip conveyor, etc.
