Product Details:

Place of Origin: Henan, China
Brand Name: Timeway
Model Number: Q-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $22,000.00/sets >=1 sets
Get Best Price Contact Now

Detail Information
Max. Length Of Workpiece (mm): 1500 Range Of Spindle Speed(r.p.m): 20 - 480 R.p.m
Machining Capacity: Heavy Duty Type: Horizontal
Spindle Motor Power(kW): 11 Weight (KG): 4300 KG
Warranty: 1 Year Key Selling Points: Competitive Price
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Max. Swing Over Bed: 630/800 Mm Max. Swing Over Cross Slide: 340/520 Mm
Distance Between Centers: 1500/3000 Mm Pipe Threading Range: 50-193 Mm
Bed Width: 550 Mm X-axis Travel: 320/420 Mm
Z-axis Travel: 1350/2850 Mm Loading Capacity: 3000 Kg
Spindle Bore: 200 Mm Spindle Speed: 20-480 Rpm
Condition: New Applicable Industries: Building Material Shops, Machinery Repair Shops, Energy & Mining, Other
Showroom Location: Egypt, Spain, Kazakhstan, Malaysia Core Components: Bearing, Motor
Spindle Bore(mm): 200 Max. Turned Length (mm): 1500 Mm
Year: 2024

Product Description

Product Description
This machine was designed for use in often harsh and demanding environment associated with OCTG industry and integrates decades of experience.
550mm width bed made of premium cast-iron, by ultrasonic frequency quenched and precision grinding by imported guideway grinder, excellent stability, high rigidity.
Hardened and precision ground spindle adopts two support structure with high-precision grade bearings, to ensure spindle running stable.

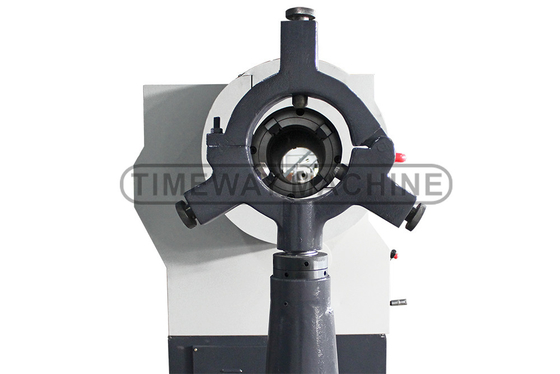

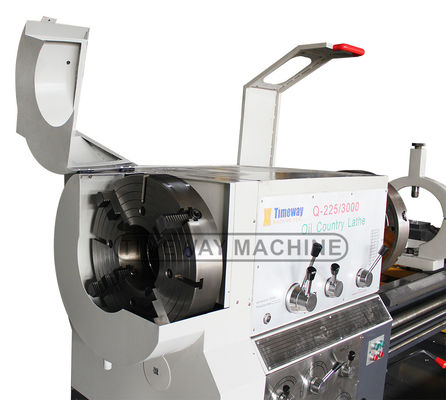

With large spindle bore and double hollow chuck on both ends of spindle for long pipes.
Energy Mining Pipe Threading Lathe Q-200 550mm Bed Width for Smooth Threading Process 0
Specification
Specification
Q-200
Max. swing over bed
630/800 mm
Max. swing over cross slide
340/520 mm
Distance between centers
1500/3000 mm
Pipe threading range
50-193 mm
Bed width
550 mm
X-axis travel
320/420 mm
Z-axis travel
1350/2850 mm
Loading capacity
3000 kg
Spindle bore
200 mm
Spindle speed steps
CCW: 12/CW: 9 steps
Spindle speed
20-480 rpm
Chuck size
520 mm
Chuck type (manual)
4-jaw
Turret type (manual)
V4
Tool shank size
32x32 mm
X-axis feed range (steps)
0.02-0.45 (22) mm/r
X-axis rapid feed speed
2300 mm/min
Z-axis feed range (steps)
0.07-1.33 (26) mm/r
Z-axis rapid feed speed
4000 mm/min
No. of Metric thread and range
1-14 (24) mm
No. of Inch thread and range
28-2 (40) TPI
Tailstock quill diameter
100 mm
Tailstock quill taper
MT5
Tailstock quill travel
250 mm
Main motor power
11 kw
Rapid feed motor power
0.3 kw
Coolant motor power
0.125 kw
Machine dimensions (LxWxH)
3700/5200x1550x1550 mm
Machine weight
4300/5500 mm
