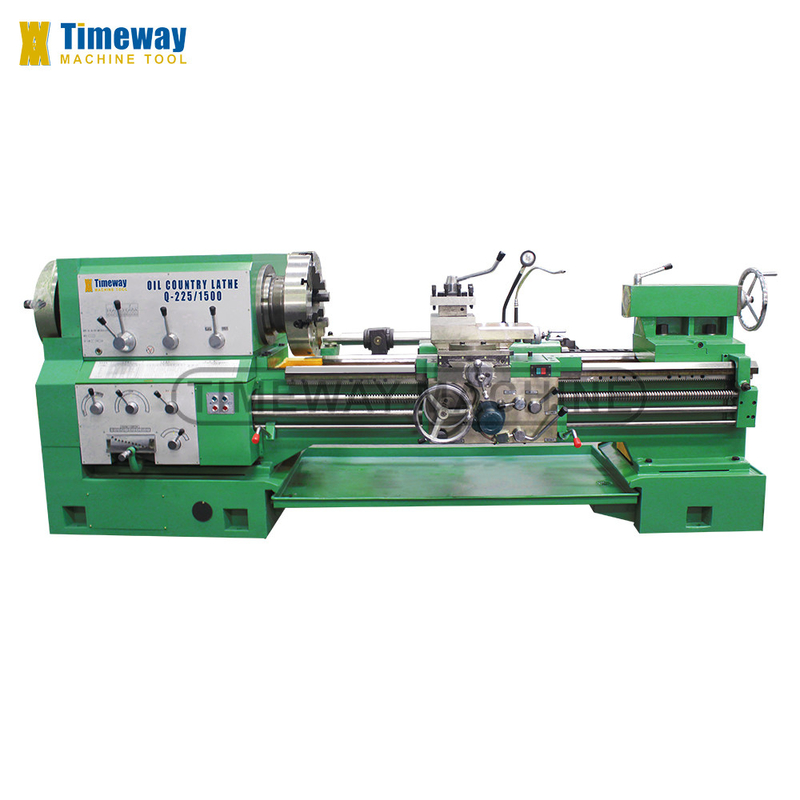

11kW Spindle Motor Power Q-225 Pipe Threading Lathe Machine with 1350/2850mm Z-axis Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | Q-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $32,500.00/sets 1-3 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Weight (KG): | 45000 KG | Warranty: | 1 Year |
| Key Selling Points: | Sustainable | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Over Bed: | 630/800mm |
| Max. Swing Over Cross Slide: | 340/520mm | Distance Between Centers: | 1500/3000mm |
| Pipe Threading Range: | 50-220mm | Bed Width: | 550mm |
| X-axis Travel: | 320/420mm | Z-axis Travel: | 1350/2850mm |
| Loading Capacity: | 3000kg | Spindle Bore: | 225mm |
| Spindle Speed Steps: | CCW: 12/CW: 9 Steps | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Other | Showroom Location: | Romania, Bangladesh, Nigeria, Uzbekistan |
| Core Components: | Bearing, Motor, Engine | Spindle Bore(mm): | 225 |
| Max. Turned Length (mm): | 1500 Mm | Year: | 2024 |
Product Description
Product Description

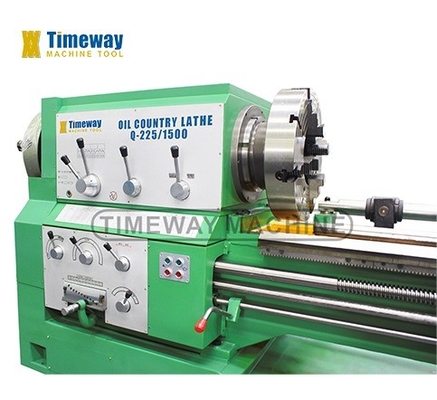

With large spindle bore and double hollow chuck on both ends of spindle for long pipes.

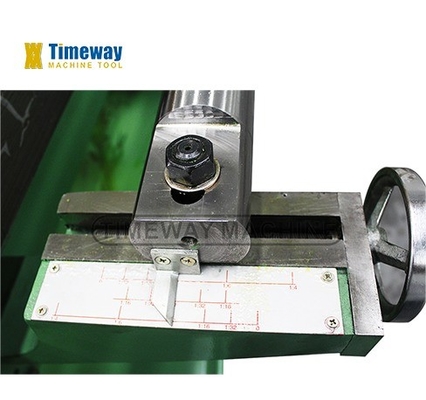

Equipped with taper turning attachment, can automatic feed turning inner an outer cone surface and threads.

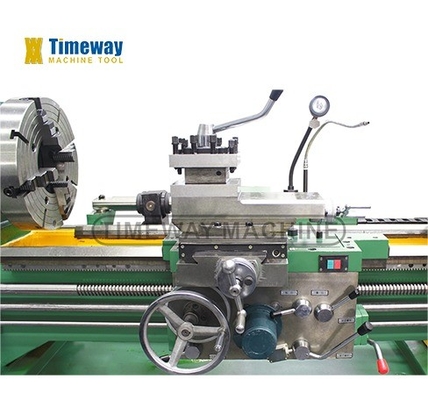

Equipped with rapid feed motor for X/Z-axis quickly positioning, reduce operating intensity and machining assistance time, improve machining efficiency.
Equipped with taper turning attachment, can automatic feed turning inner an outer cone surface and threads.
Equipped with rapid feed motor for X/Z-axis quickly positioning, reduce operating intensity and machining assistance time, improve machining efficiency.
Specification
Specifications | Q-225 |
Max. swing over bed | 630/800 mm |
Max. swing over cross slide | 340/520 mm |
Distance between centers | 1500/3000 mm |
Pipe threading range | 50-220 mm |
Bed width | 550 mm |
X-axis travel | 320/420 mm |
Z-axis travel | 1350/2850 mm |
Loading capacity | 3000 kg |
Spindle bore | 225 mm |
Spindle speed steps | CCW: 12/CW: 9 steps |
Spindle speed | 20-480 rpm |
Chuck size | 520 mm |
Chuck type (manual) | 4-jaw |
Turret type (manual) | V4 |
Tool shank size | 30x30 mm |
X-axis feed range (steps) | 0.02-0.45 (22) mm/r |
X-axis rapid feed speed | 2300 mm/min |
Z-axis feed range (steps) | 0.07-1.33 (26) mm/r |
Z-axis rapid feed speed | 4000 mm/min |
No. of Metric thread and range | 1-14 (24) mm |
No. of Inch thread and range | 28-2 (40) TPI |
Tailstock quill diameter | 100 mm |
Tailstock quill taper | MT5 |
Tailstock quill travel | 250 mm |
Main motor power | 11 kw |
Rapid feed motor power | 0.3 kw |
Coolant motor power | 0.125 kw |
Machine dimensions (LxWxH) | 3700/5200x1650x1550 mm |
Machine weight | 4500/5700 kg |
